Charge the pen before first use:

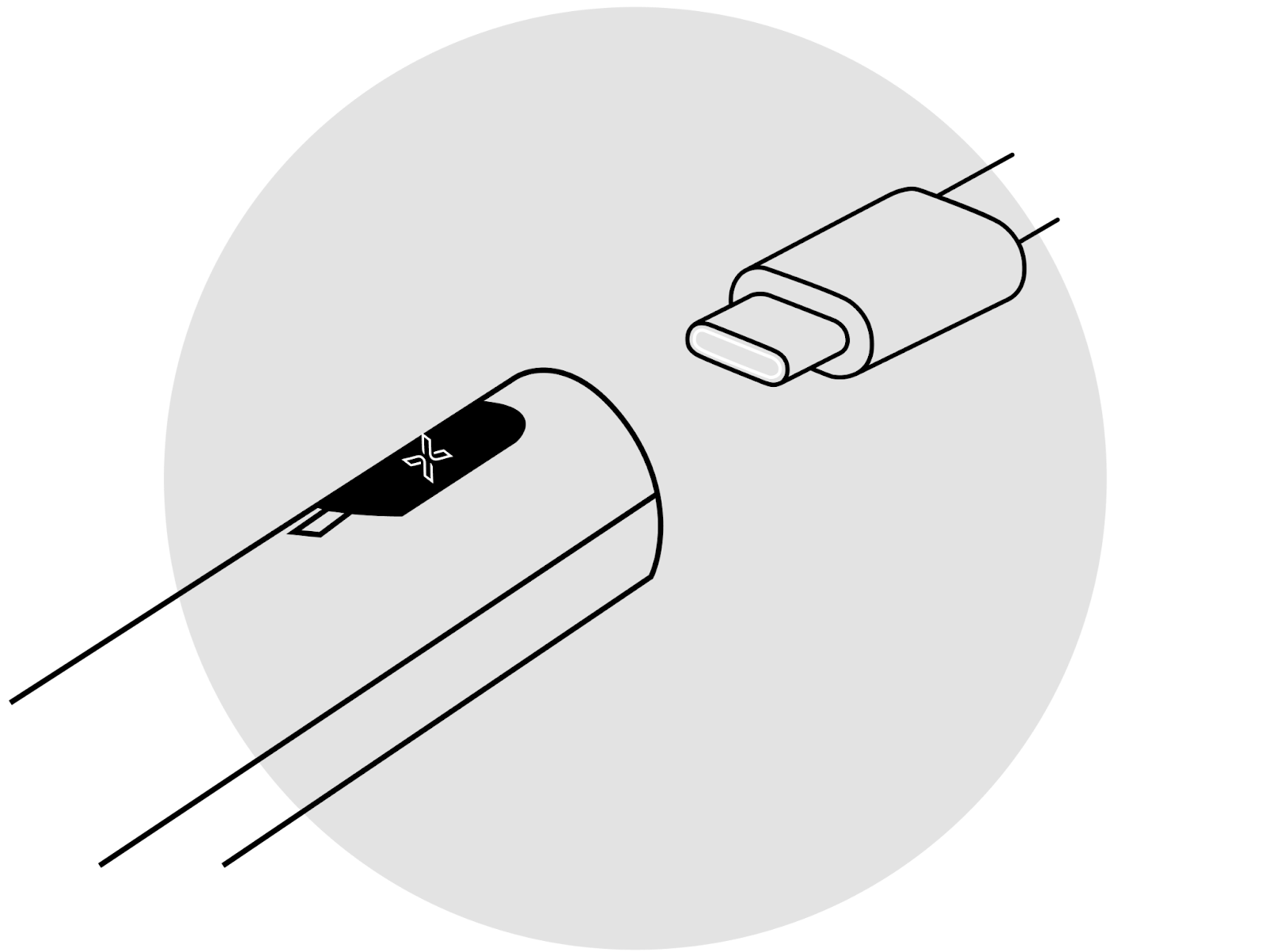

- Plug the charging cable into the pen and connect to a USB power source.
- The LED will show a steady red light while charging.
- When fully charged, the LED turns green and then switches off.
- A full charge takes 2–3 hours and provides up to 17 hours of continuous use.
If there is no LED response when charging, reset the pen and try charging again. If the pen is not used for a long period and becomes completely discharged, it may shorten battery life. Charge frequently for best results.
Turn the pen on:

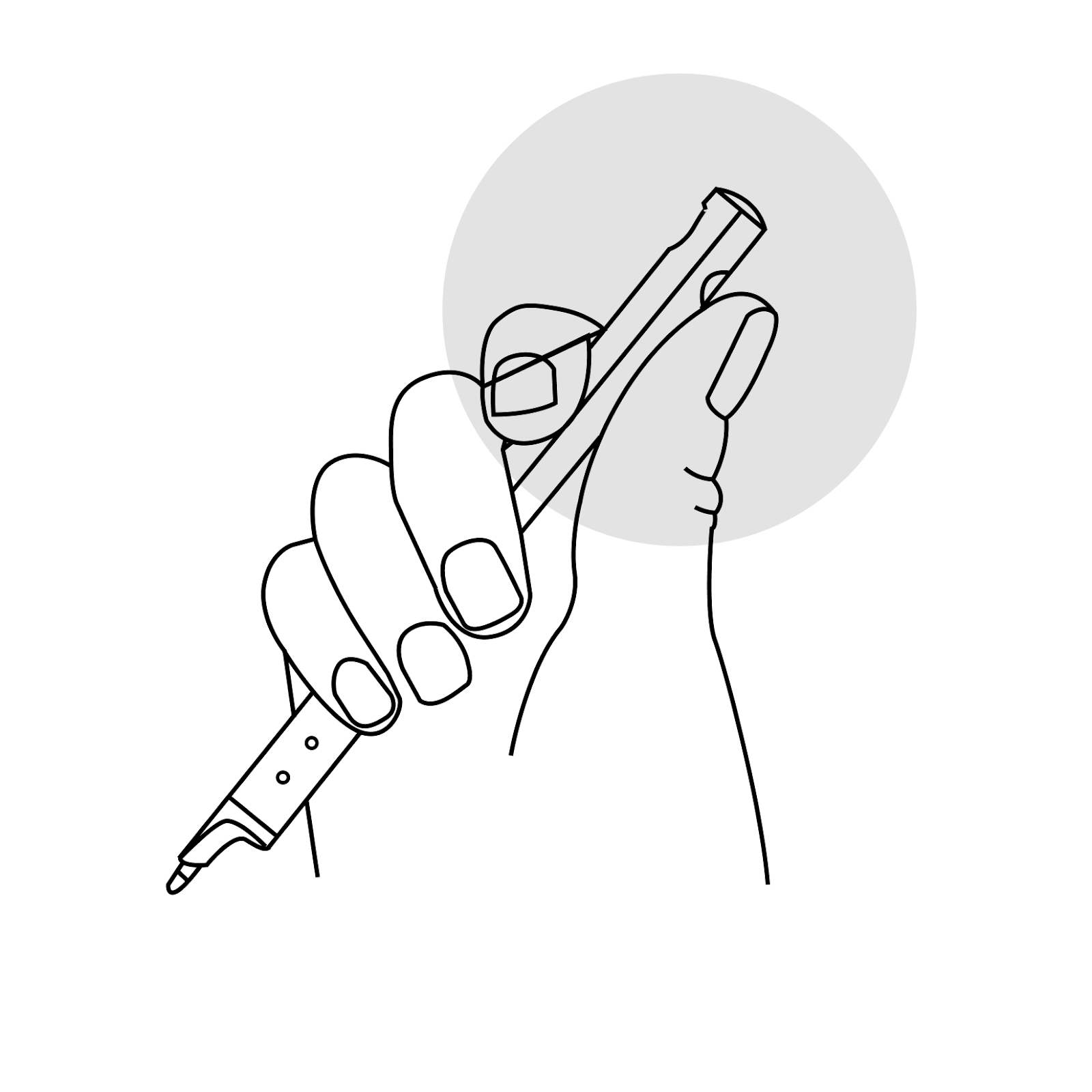

- Press the power button : the LED light will turn on in 1 second.
- To turn off, press and hold for 2 seconds the LED will start flashing and the pen will turn off.
- If idle for more than 6 hours, the pen turns off automatically. You can adjust the auto-power-off time between 1–10 hours in the XNote app settings.
Auto Power Function: Taking the cap off or starting to write will automatically turn on the pen. Enabled by default; adjustable in the app.
Reset: If the pen does not turn off, won't charge, or stops working, press and hold the power button for 10 seconds. The pen will be turned off and restarted. Internal data will be saved.
